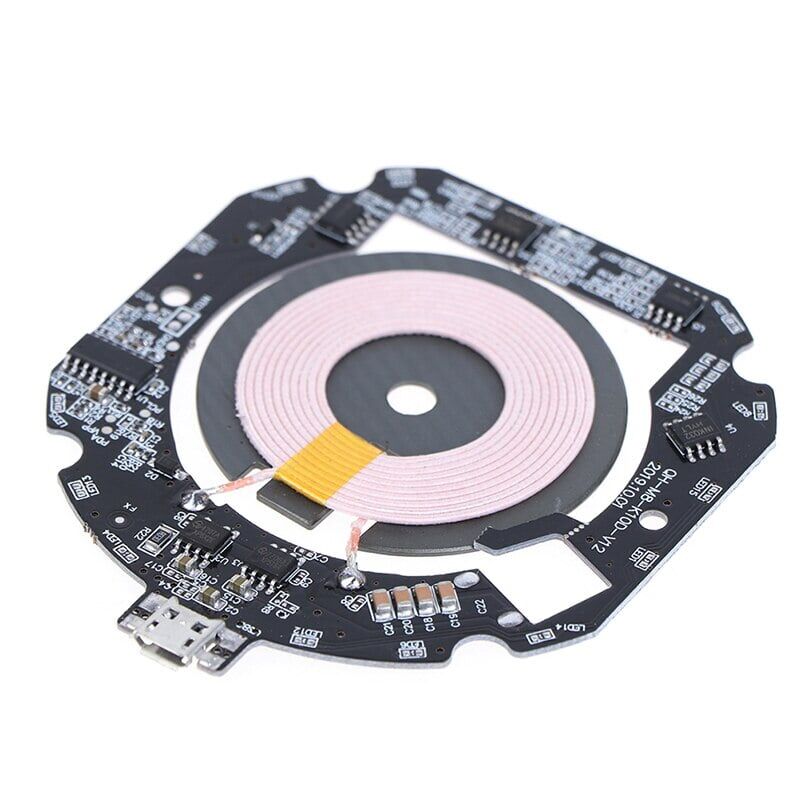

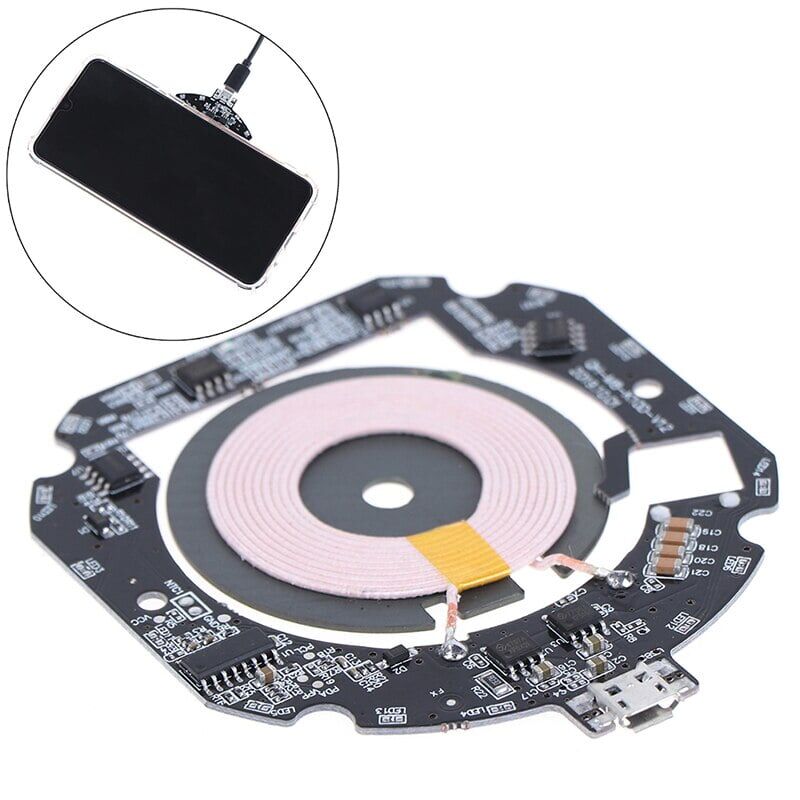

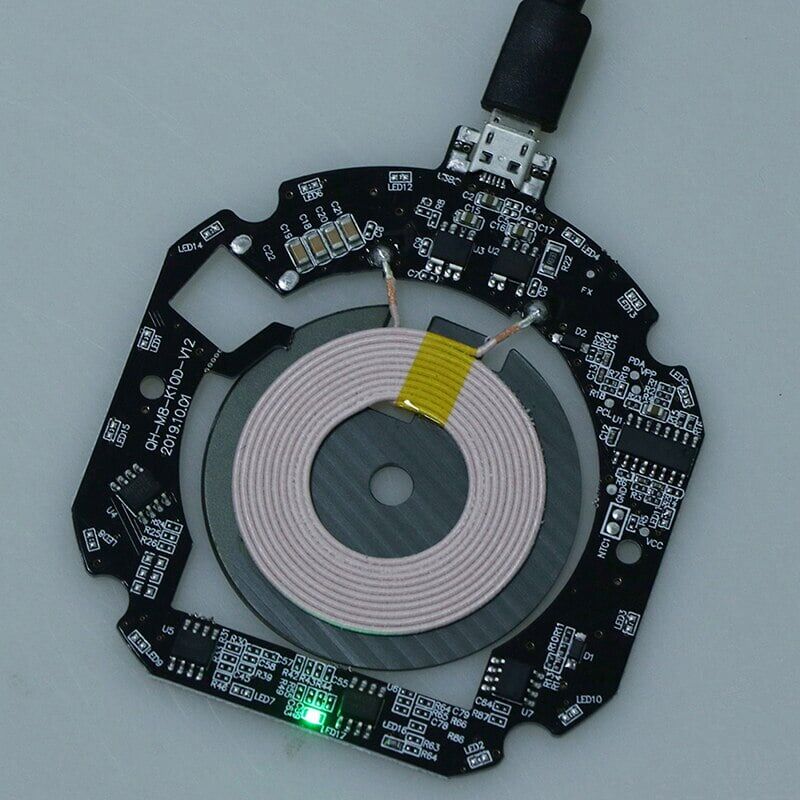

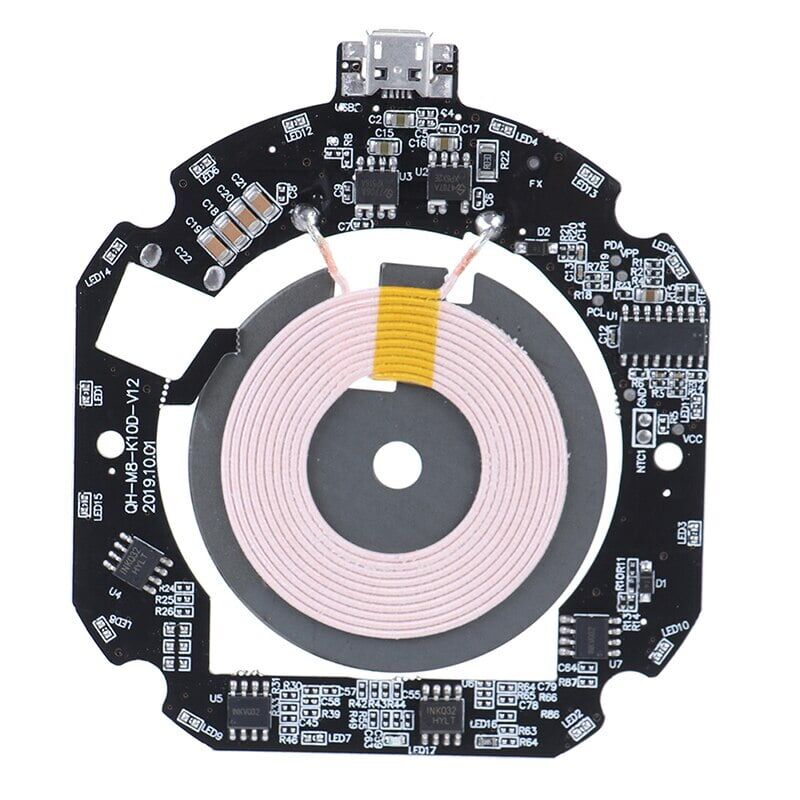

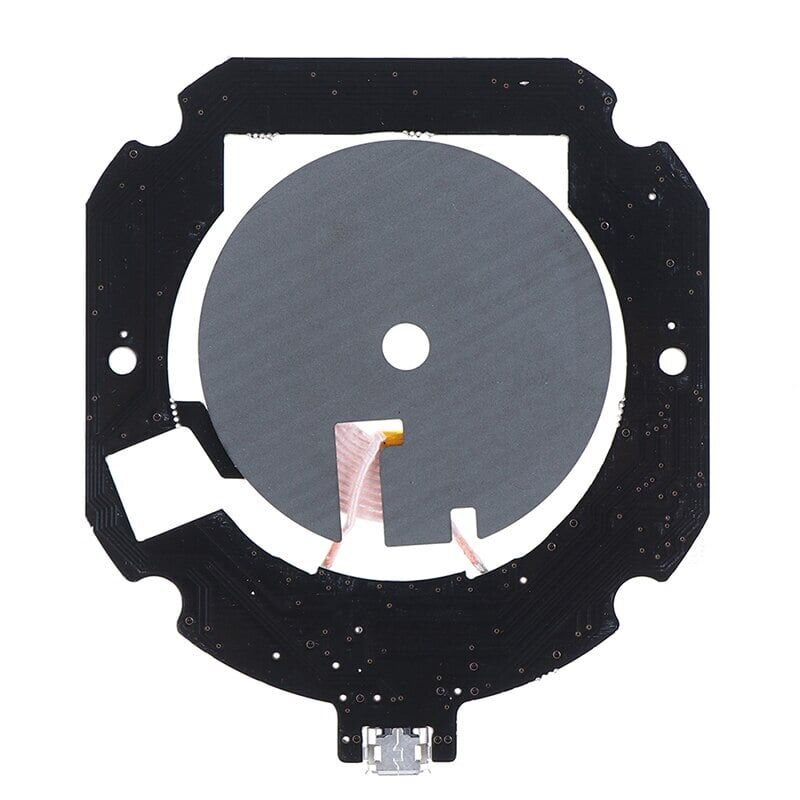

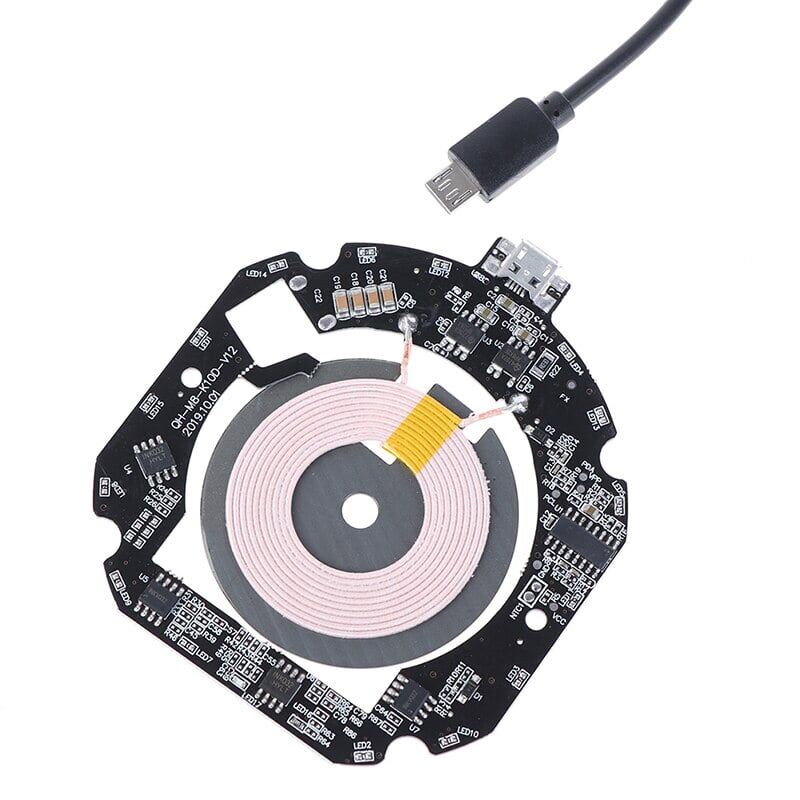

10W/15W QI Fast Wireless Charger PCBA Circuit Board Module Transmitter Coil
Qi transmitter PCBA engineered for high-volume OEM production.
Features:
- 10W/15W selectable power with 73% efficiency
- Over-temperature/current protection (auto-cutoff at 60°C)
- Qi-certified & CE/CCC compliant
- Configurable for automotive consoles, medical kiosks, and retail displays
Scalable ODM support with 12+ years wireless power expertise.
Details about 10W/15W QI Fast Wireless Charger PCBA Circuit Board Module Transmitter Coil
- GaN: YES
- Max. Output Power: ==
- Quality Certification: CCC
- Applied Fast Charge Protocols: Other
- Origin: CN(Origin)
- Output Interface: None
- Power Source: USB
Product introduction:
100% brand and high quality
Function parameter description:
1. Input voltage: qc2.0
2. USB output voltage: 10W / 15W
3. Charging current: 1000mah
4. Charging power: up to 10W
5. Wireless conversion efficiency: 73%, boost circuit 90%
6. Transmission distance: max. 10 mm, recommended receiving and transmitting distance: 2 mm ~ 4 mm
7. Standby power consumption: the average power consumption is less than 50mw
8. Over temperature protection: when the temperature is higher than 60 ℃ during charging, the charging will be stopped automatically for 2 minutes, and the charging will be resumed after the temperature drops
9. Over current protection: when the re current consumed during charging is greater than 1.8A, the charging will be stopped automatically to prevent damage to the charger
10. Executive standard: Qi wireless charging standard
11. Product certification: compatible with Qi certification standard
The package includes:1pc QI Fast Wireless Charger
