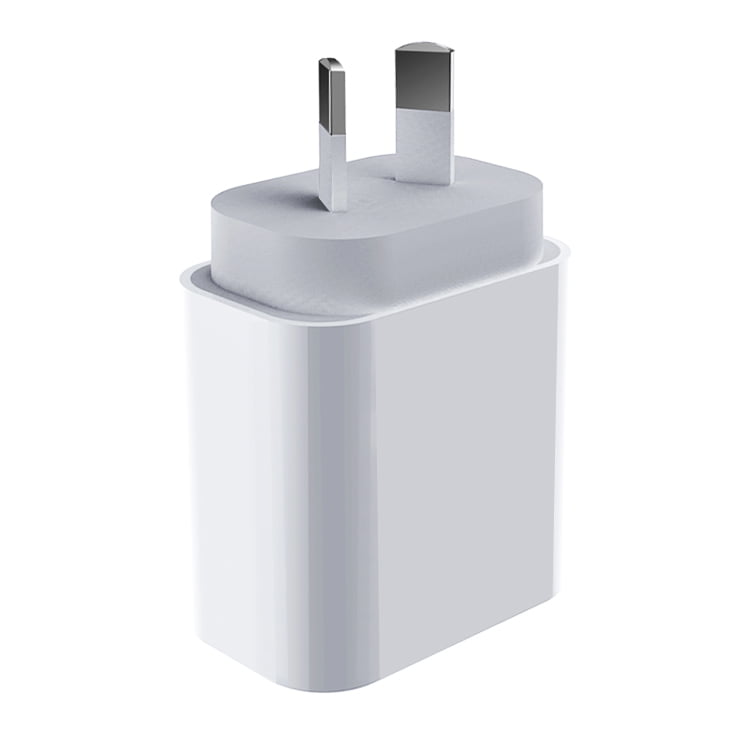

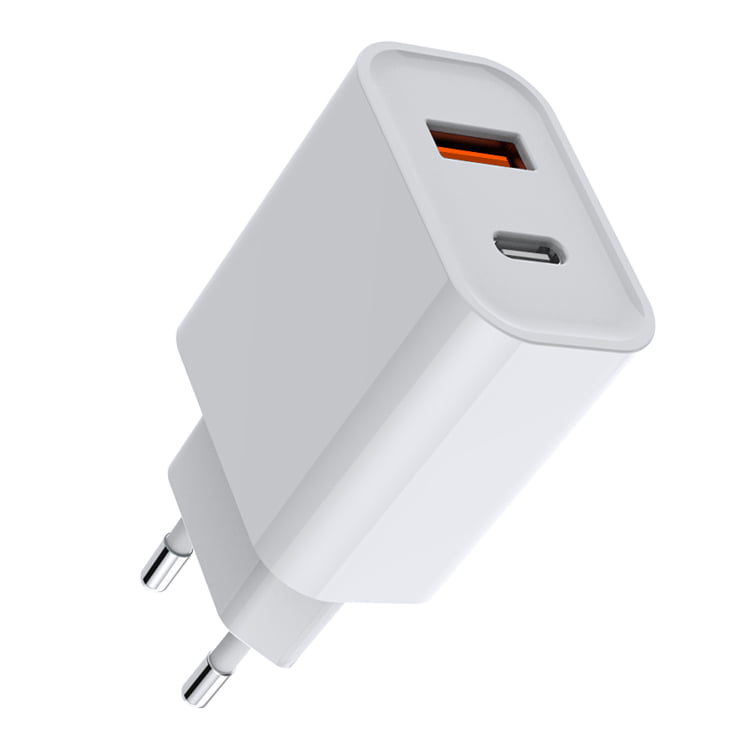

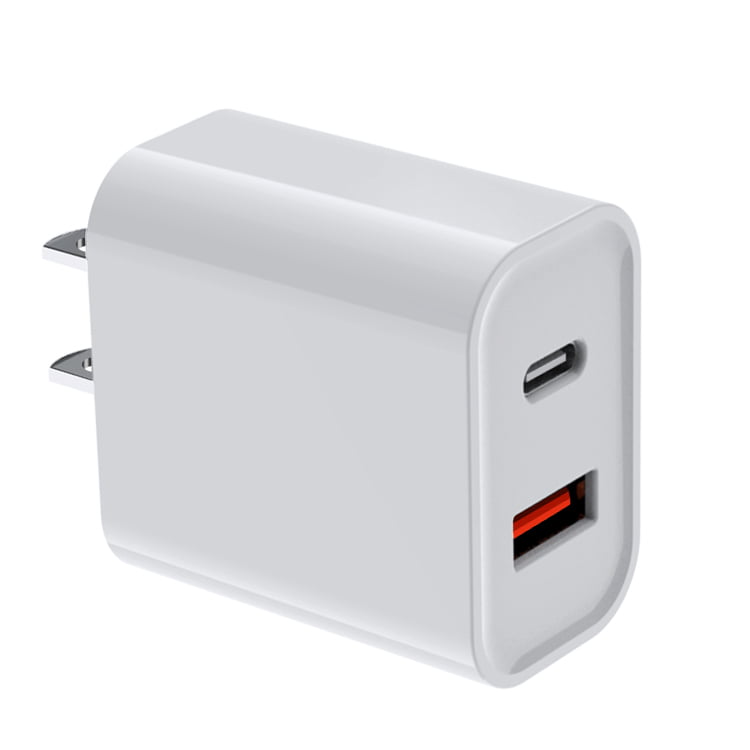

20W PD& QC Wall Charger

SKU CWT20A0922 Category Tags , ,
  • The USB A port supports Huawei Super Fast Charge, with a maximum current of 3A
  • supports QC3.0 and Samsung AFC fast charge protocols, and Apple 2.4A charging protocol.
  • The USB C port supports the PD3.0 fast charge protocol, including the A port fast charge protocol, but does not support Huawei Super Fast Charge.
  • Dual port simultaneous use reduced to 5V-3A output, including protocol IC
  • Product description: The USB A port supports Huawei Super Fast Charge, with a maximum current of 3A,supports QC3.0 and Samsung AFC fast charge protocols, and Apple 2.4A charging protocol. The USB C port supports the PD3.

Details about 20W PD& QC Wall Charger

Product Model W20A0922
input voltage (ACV)  110-240VAC
output voltage (DCV)  5-12V
rated output current  5V3A/9V2A/ 9V/2.22A,12V1.5A
output load regulation  ±5.0%
output ripple&sound  ≤80mVp-p
starting delay(S)  starting time:≤500ms,duration time:≥20ms
work efficiency  85%
protection function  short-circuit,over-current,over voltage,over-load protection
working enviroment  work temp:-10℃~+60℃(full-load)
 storage temp:5%-95%RH(no condensation)
test categories  no-load voltage,input current,load voltage,ripple output,shell to the ground
