36W PD & QC Wall Charger

SKU CWT0001003 Category Tag
input voltage (ACV):110-240VAC
output voltage (DCV):5-12V
rated output current:5V3A/9V2A/12V1.5A
work efficiency:85%

Details about 36W PD & QC Wall Charger

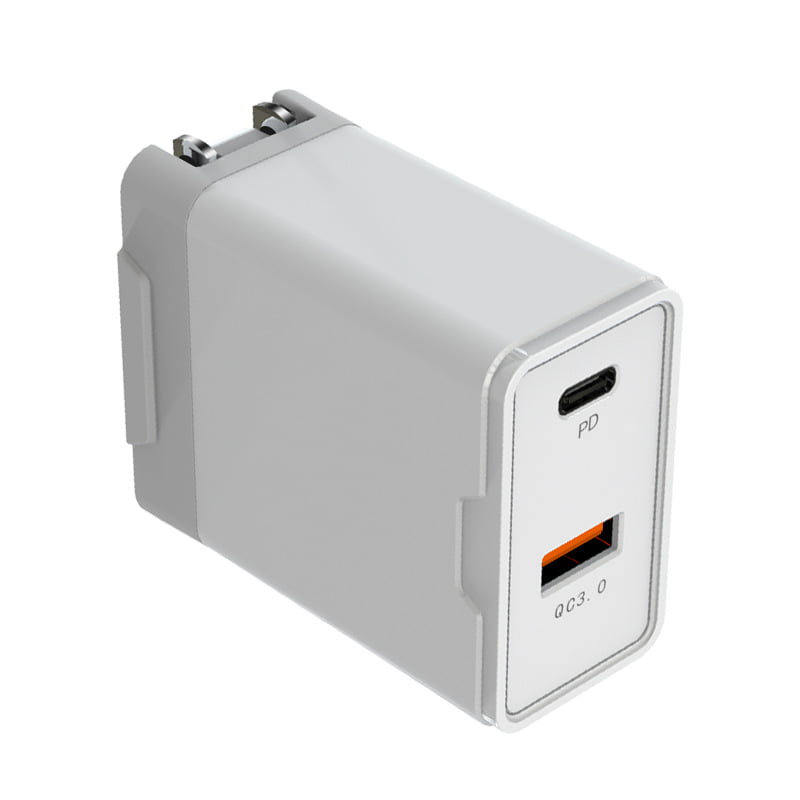

36W PD & QC Wall Charger

Features:

The USB A port supports Huawei Super Fast Charge, with a maximum current of 3A

supports QC3.0 and Samsung AFC fast charge protocols, and Apple 2.4A charging protocol.

The USB C port supports the PD3.0 fast charge protocol, including the A port fast charge protocol, but does not support Huawei Super Fast Charge.

Dual output 36W including protocol IC

Product description: The USB A port supports Huawei Super Fast Charge, with a maximum current of 3A, supports QC3.0 and Samsung AFC fast charge protocols, and Apple 2.4A charging protocol. The USB C port supports the PD3.

Specifications:

Product Model  W36A1003
input voltage (ACV)  110-240VAC
output voltage (DCV)  5-12V
rated output current  5V3A/9V2A/12V1.5A
output load regulation  ±5.0%
output ripple&sound  ≤80mVp-p
starting delay(S)  starting time:≤500ms,duration time:≥20ms
work efficiency  85%
protection function  short-circuit,over-current,over voltage,over-load protection
working enviroment  work temp:-10℃~+60℃(full-load)
 storage temp:5%-95%RH(no condensation)
test categories  no-load voltage,input current,load voltage,ripple output,shell to the ground
