10W Dual-Coil Wireless Charging TX Module
Dual-coil transmitter PCBA with up to 10W reference output for embedded wireless charging products and wider phone-placement areas.
By submitting this form, you agree that CowinLink may use your information to respond to your enquiry. Read our Privacy Policy.
Details about 10W Dual-Coil Wireless Charging TX Module

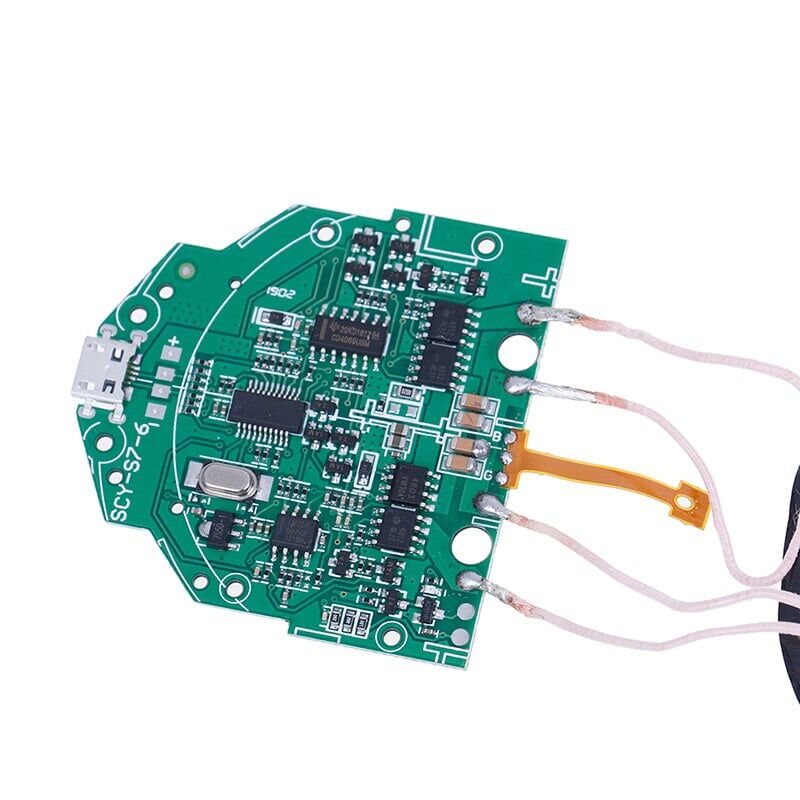

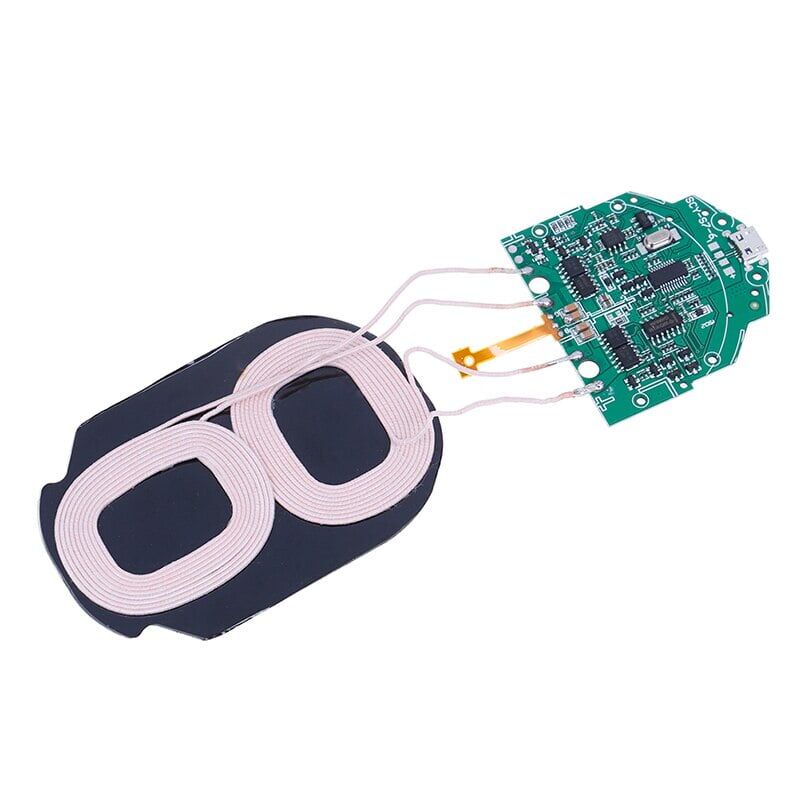

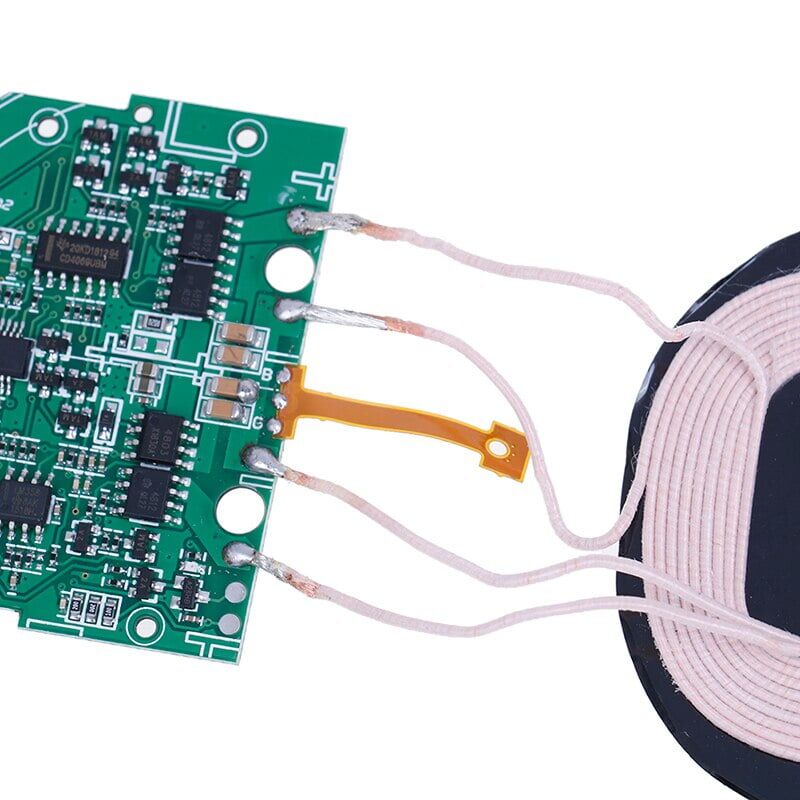

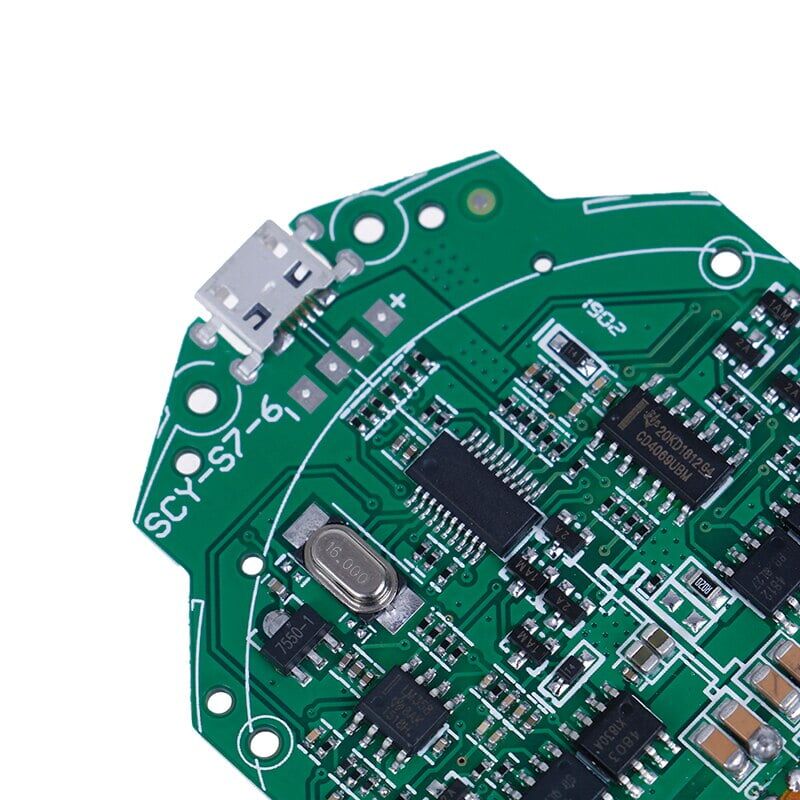

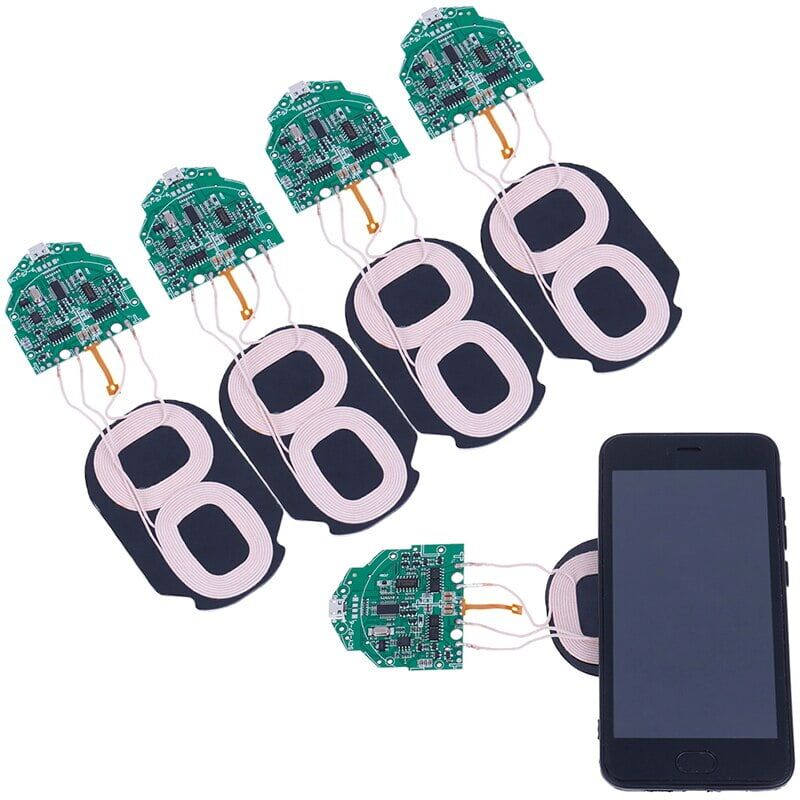

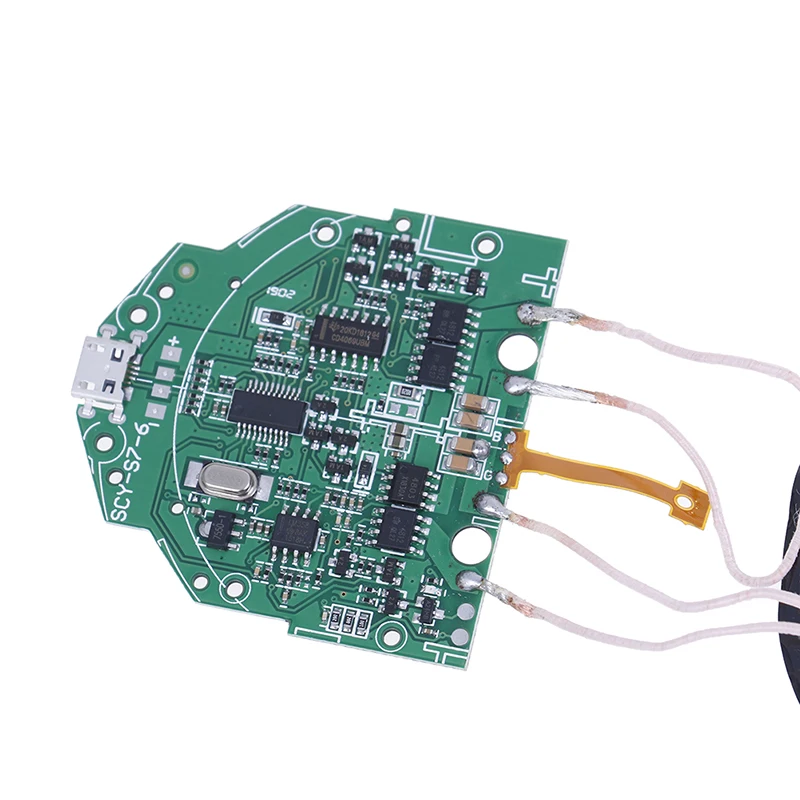

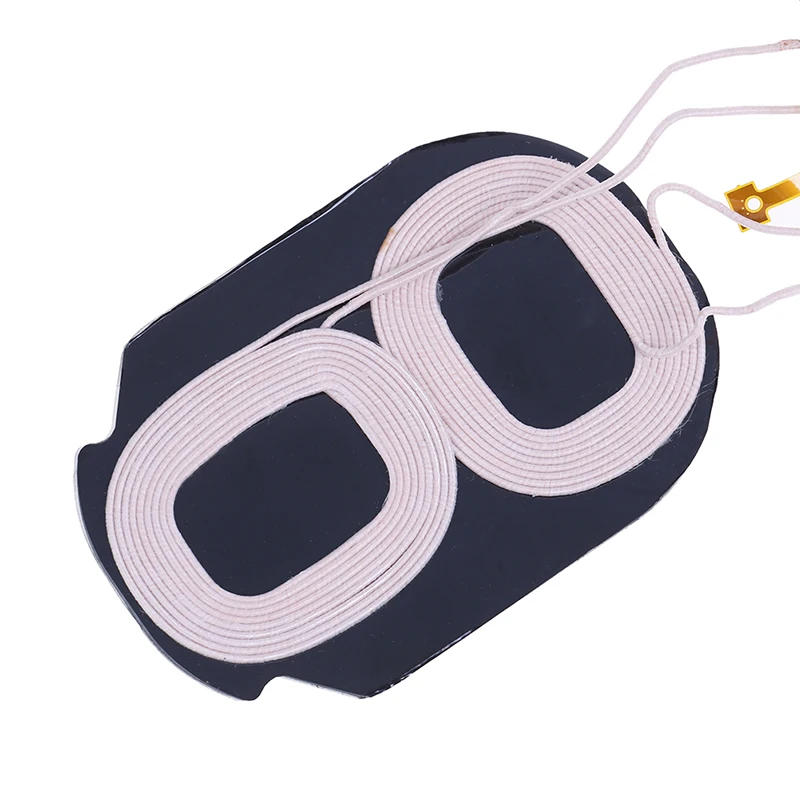

This dual-coil TX reference board supports a broader placement area than a single-coil design. It should be evaluated with the target phone or receiver, input source and the exact cover material used in production.
Reference specifications
| Input | 9V / 1.5–2A reference |
|---|---|
| Output class | Up to 10W, receiver dependent |

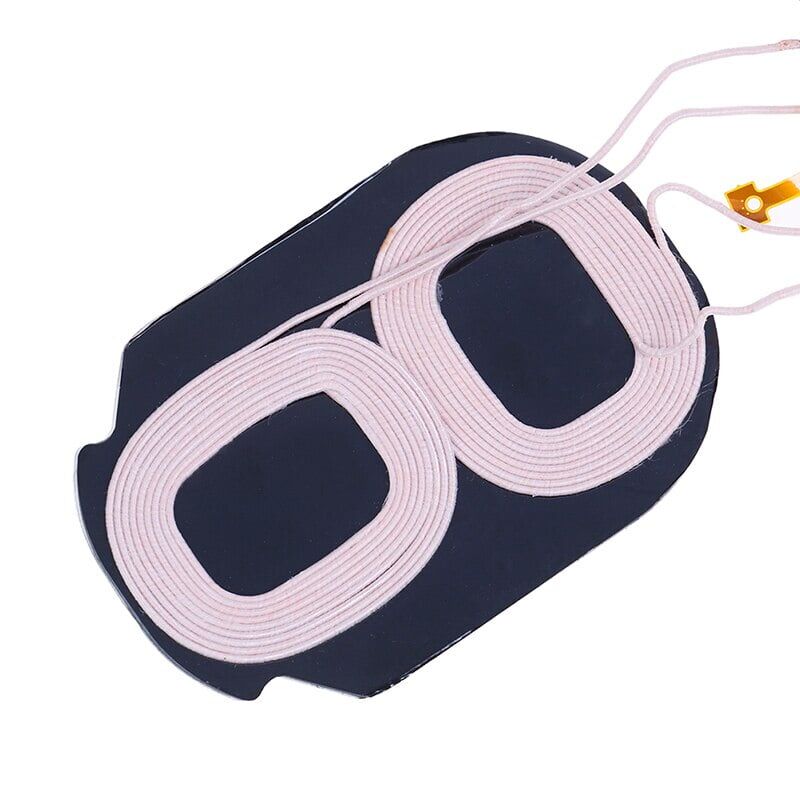

| Coil arrangement | Two coils |
| Recommended transfer gap | 2–4mm |
| Working frequency | 110–205kHz reference |
Typical use: Charging stands, embedded trays and prototype surfaces.
Integration and OEM review
Before sampling, confirm the target devices or receiver, input source, enclosure material, coil-to-surface distance, ambient and surface-temperature limits, required charging mode and destination market. Values above are reference data and should be verified in the ordered configuration.
Compliance and certification documents are model- and configuration-specific. CowinLink will identify available evidence and any new testing required for the destination market; this page does not claim certification without a matching record.
Send a project brief with your device list, drawing, annual volume, branding and packaging requirements.
