​​Unleashing Seamless 4K Video Sharing in Multi-Conference Rooms: The Ultimate Wired HDMI Solutions​​

Introduction​​

​​The Era of 4K in Conference Rooms​​

Corporate environments demand crystal-clear 4K video for critical events like product launches and executive presentations. This resolution captures subtle facial expressions and product details that standard HD cannot. Multi-location collaboration further necessitates seamless 4K distribution across rooms for synchronized viewing experiences.

​​The Focus on Wired HDMI Solutions​​

Wired HDMI outperforms wireless alternatives through:

1. ​​Unmatched Stability​​: Immune to Wi-Fi/Bluetooth interference during high-stakes events.
2. ​​Bandwidth Capacity​​: HDMI 2.1 cables support 48Gbps for 4K@120Hz fluid motion.
   Specialist providers like CowinLink deliver tailored solutions for complex multi-room setups.

​​The Basics of HDMI for 4K Video Transmission​​

​​HDMI Technology Primer​​

Since 2003, HDMI has revolutionized AV connectivity by combining audio/video signals in one cable—eliminating tangled connections. Continuous upgrades now support higher resolutions, color depths, and advanced audio formats across consumer/professional applications.

​​4K Video Requirements and HDMI Standards​​

• ​​Resolution​​: 3840×2160 pixels (4x 1080p density)
• ​​Critical Bandwidth​​:
  • HDMI 2.0: 18Gbps (4K@60Hz)
  • HDMI 2.1: 48Gbps (8K@60Hz/4K@120Hz)
    Lower standards like HDMI 1.4 (10.2Gbps) force compromises in color sampling or refresh rates.

​​Challenges in Multi-Conference Room 4K Video Sharing​​

​​Signal Attenuation and Distance Limitations​​

Copper HDMI cables degrade beyond 15m:

• Pixelation, color banding, and signal dropouts occur
• Daisy-chaining cables compounds loss in multi-floor deployments

​​Interference and Compatibility Issues​​

• ​​EMI Sources​​: Fluorescent lights, printers, HVAC systems
• ​​Compatibility Failures​​:
  • Mismatched wall plates cause signal reflections
  • Non-compliant matrix switchers trigger frame drops or system crashes

​​Frequent Plug-and-Play Concerns​​

Active Optical Cable (AOC) connectors weaken with repeated use, leading to:

• Intermittent signal loss (“snow” artifacts)
• Physical port damage from improper insertion

​​Wired HDMI Solutions for Multi-Conference Rooms​​

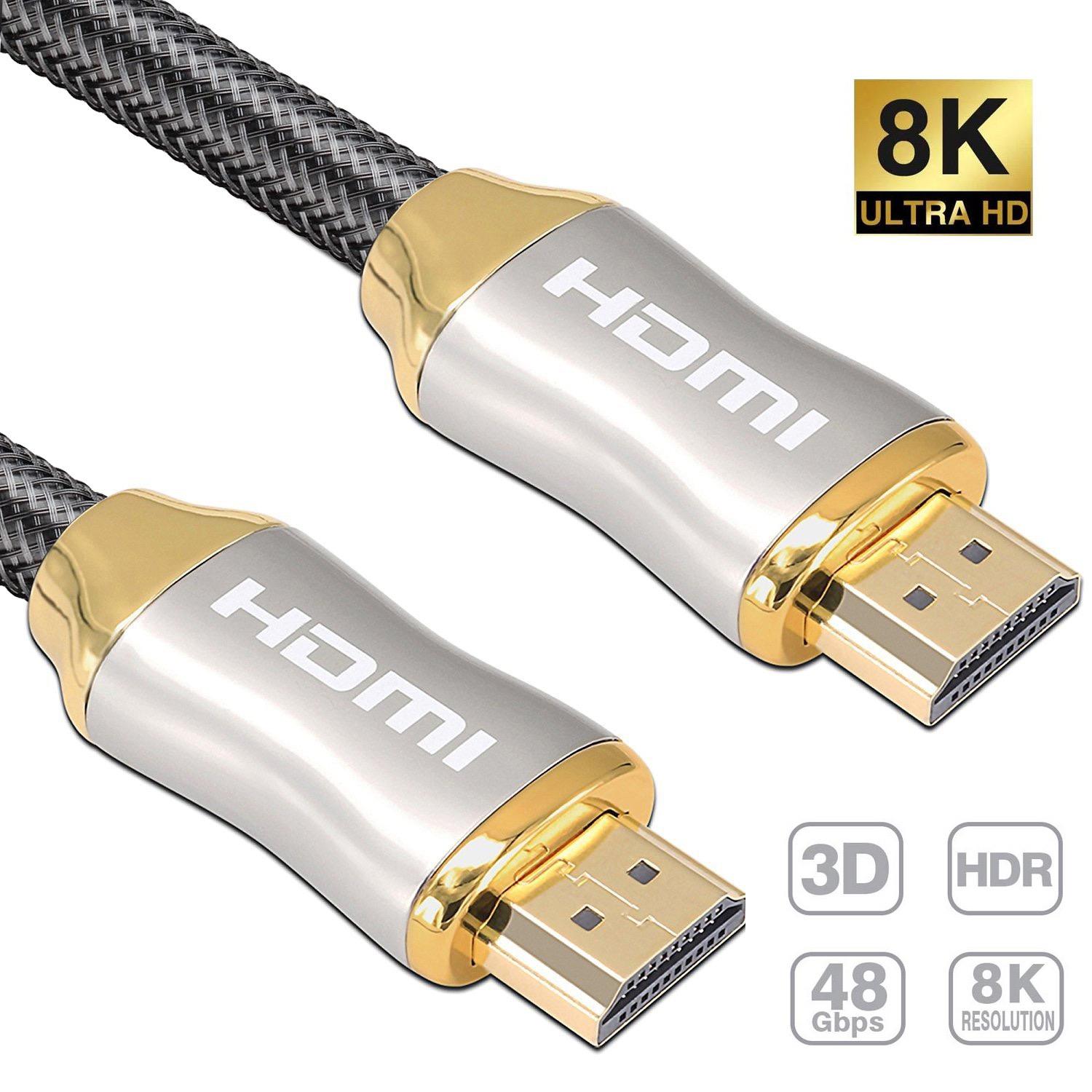

​​HDMI Copper Cables: Short-Range Reliability​​

• ​​Ideal For​​: <3m connections
• ​​Key Specifications​​:
  • 28AWG wire gauge
  • Silver-plated conductors
• ​​Benefits​​: Zero dropouts/pixelation for local displays

​​HDMI Active Optical Cables: Long-Range Powerhouses​​

• ​​Range​​: 50m+ 4K transmission
• ​​Technology​​: Light signals via optical fibers + built-in electro-optical converters
• ​​Advantage​​: Eliminates intermediate connection points

​​The Optimal Combination: Copper + Optical Cables​​

​​Implementation Example​​:

1. Source device → 3m copper cable → distribution hub
2. Hub → table insert coupler → AOC → remote rooms
3. AOC → wall coupler → local copper cable → display
   Couplers maintain signal integrity across hybrid systems.

​​CowinLink’s Custom HDMI Cable Solutions​​

​​Understanding CowinLink​​

Industry leader with:

• HDMI standards expertise (1.4 to 2.1)
• Strategic raw material partnerships
• Advanced manufacturing processes

​​Customization Services​​

• ​​Length​​: Precise sizing for variable room distances
• ​​Color​​: Aesthetic alignment with corporate environments
• ​​Function​​: EMI-shielded designs for noisy electrical environments

​​Quality Assurance and Technical Support​​

• ​​Materials​​: Oxygen-free copper / premium optical fibers
• ​​Testing Protocols​​: Signal integrity, bandwidth validation, bend/pull tests
• ​​Lifecycle Support​​: Pre-installation planning → on-site troubleshooting → maintenance

​​Installation and Maintenance Tips​​

​​Installation Best Practices​​

1. ​​Route Planning​​: Utilize cable trays/conduits; avoid sharp bends
2. ​​Cable Management​​:
   • Velcro straps for grouping
   • Separation from power/network cables
3. ​​Adapter Compliance​​: Validate wall plate/table insert/matrix switcher configurations

​​Maintenance and Troubleshooting​​

• ​​Routine Checks​​: Monthly connection reseating + interface cleaning

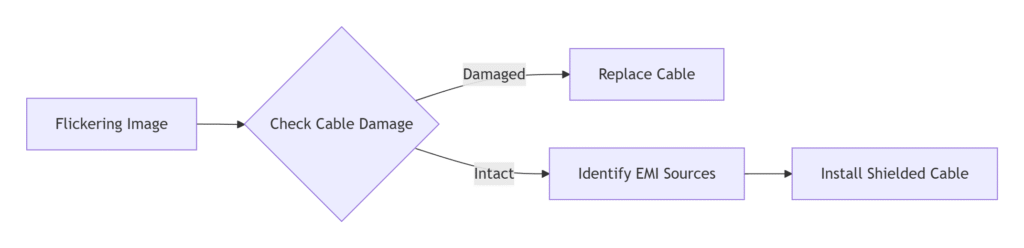

• ​​Signal Instability Protocol​​:

• ​​No-Image Resolution​​: Verify power → input source → port functionality

​​Conclusion​​

​​Recap of Key Points​​

• ​​Short Range​​: 28AWG copper cables (<3m)
• ​​Long Range​​: AOCs (>50m) with optical signal transmission
• ​​Hybrid Systems​​: Copper + optical + couplers for complex layouts
• ​​Custom Solutions​​: CowinLink’s length/color/EMI-shielding customization

​​Future Outlook​​

• ​​HDMI Evolution​​: 8K+/16K support with higher refresh rates
• ​​AI Integration​​: Real-time audience analytics during presentations
• ​​Implementation Strategy​​: Prioritize distance mapping, interference profiling, and connector durability assessments. Partner with specialists for enterprise-grade deployments.
